How to Create the path element vertical line in JavaFX?

JavaObject Oriented ProgrammingProgramming

This is class represents the path element vertical line. It helps you to draw a vertical line from the current coordinates to the specified (new) coordinates.

To create a line path element −

  • Instantiate the VLineTo class.

  • Set values to the properties of this class using setter methods or, bypassing them to the constructor.

  • Instantiate the Path class.

  • Get the observable list object of the above-created Path using the getElements() method.

  • Add the above created VLineTo object to the observable list using the add() method.

  • Finally, add the path to the Group object.

Example

import javafx.application.Application;
import javafx.scene.Group;
import javafx.scene.Scene;
import javafx.scene.paint.Color;
import javafx.stage.Stage;
import javafx.scene.shape.HLineTo;
import javafx.scene.shape.LineTo;
import javafx.scene.shape.MoveTo;
import javafx.scene.shape.Path;
import javafx.scene.shape.VLineTo;
public class VLineToExample extends Application {
   public void start(Stage stage) {
      //Creating PathElement objects
      MoveTo moveTo = new MoveTo(150, 50);
      LineTo line1 = new LineTo(421, 90);
      //Creating the HLineTo object
      VLineTo vLine1 = new VLineTo();
      vLine1.setY(230);
      HLineTo hLine = new HLineTo();
      hLine.setX(50);
      VLineTo vLine2 = new VLineTo();
      vLine2.setY(50);
      //Creating a Path
      Path path = new Path();
      path.getElements().addAll(moveTo, line1, vLine1, hLine, vLine2);
      //Setting other properties
      path.setStrokeWidth(8.0);
      path.setStroke(Color.DARKSLATEGREY);
      //Preparing the Stage object
      Group root = new Group(path);
      Scene scene = new Scene(root, 595, 300, Color.BEIGE);
      stage.setTitle("JavaFX Example");
      stage.setScene(scene);
      stage.show();
   }
   public static void main(String args[]){
      launch(args);
   }
}

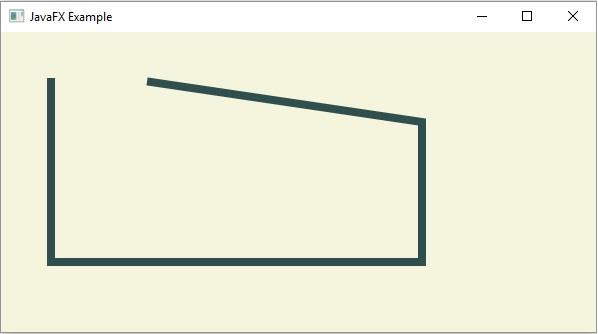

Output
