How to Create a Triangle Using CSS clip-path?
On a web page, you can create a triangle easily. Use the clip-path property or even the child selector concept can be used. The clip-path allows a user to clip an element to a shape. This shape is to be set polygon to create a triangle.
Syntax
The syntax of CSS clip-path property is as follows −
Selector { clip-path: /*value*/ }
Create a Triangle using the clip-path
The following example illustrate CSS clip-path property. Here, we have set the clip-path shape to polygon to create a triangle. This is done using the polygon() method −
clip-path: polygon(50% 0, 100% 100%, 0% 100%);
Example

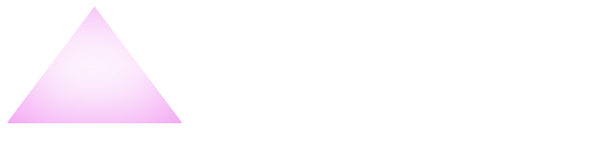

The following example uses the polygon() to create a triangle −
<!DOCTYPE html> <html> <head> <style> div { padding: 10%; border-radius: 2%; width: 10%; box-shadow: inset 0 0 80px violet; clip-path: polygon(50% 0, 100% 100%, 0% 100%); } </style> </head> <body> <div></div> </body> </html>
Create multiple triangles with child selector
The child selector can be used to crate multiple triangle shapes. Here, we have a div inside div i.e., div > div −
div > div { height: 12px; border-top: 40px ridge orange; border-right: 20px solid white; border-bottom: 60px ridge cornflowerblue; border-left: 80px solid white; }
Example

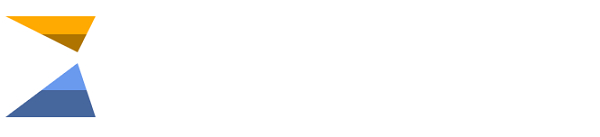

The following example selects all <div> elements that are children of a <div> −
<!DOCTYPE html> <html> <head> <style> div { display: flex; margin: 10px 0 20px; } div > div { height: 12px; border-top: 40px ridge orange; border-right: 20px solid white; border-bottom: 60px ridge cornflowerblue; border-left: 80px solid white; } </style> </head> <body> <div> <div></div> </div> </body> </html>
