How to start a new activity by clicking a button on Android using Kotlin?

Android Mobile Development Apps/Applications Kotlin

This example demonstrates how to start new activity on click button on Android using Kotlin

Step 1 − Create a new project in Android Studio, go to File ⇒ New Project and fill all required details to create a new project.

Step 2 − Add the following code to res/layout/activity_main.xml.

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:padding="4dp">
   <TextView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_centerHorizontal="true"
      android:layout_marginTop="70dp"
      android:background="#008080"
      android:padding="5dp"
      android:text="TutorialsPoint"
      android:textColor="#fff"
      android:textSize="24sp"
      android:textStyle="bold" />
   <Button
      android:id="@+id/button"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_centerInParent="true"
      android:background="@android:color/background_dark"
      android:padding="4dp"
      android:text="Open New Activity"
      android:textColor="@color/colorAccent"
      android:textSize="32sp"
      android:textStyle="bold" />
</RelativeLayout>

Step 3 − Add the following code to src/MainActivity.kt

import android.content.Intent
import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.widget.Button
class MainActivity : AppCompatActivity() {
   override fun onCreate(savedInstanceState: Bundle?) {
      super.onCreate(savedInstanceState)
      setContentView(R.layout.activity_main)
      val button: Button = findViewById(R.id.button)
      button.setOnClickListener {
         val intent = Intent(this, SecondActivity::class.java)
         startActivity(intent)
      }
   }
}

Step 4 − Create a new activity and add the following code −

activity_second.xml −

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
   android:layout_width="match_parent"
   android:padding="4dp"
   android:layout_height="match_parent">
   <TextView
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_centerHorizontal="true"
      android:layout_marginTop="70dp"
      android:background="#008080"
      android:padding="5dp"
      android:text="TutorialsPoint"
      android:textColor="#fff"
      android:textSize="24sp"
      android:textStyle="bold" />
   <TextView
      android:id="@+id/textView"
      android:layout_width="match_parent"
      android:layout_height="wrap_content"
      android:layout_centerInParent="true"
      android:text="Welcome to Second Activity"
      android:textAlignment="center"
      android:textColor="@android:color/holo_blue_dark"
      android:textSize="24sp"
      android:textStyle="bold" />
</RelativeLayout>

SecondActivity.kt

import android.os.Bundle
import androidx.appcompat.app.AppCompatActivity
class SecondActivity : AppCompatActivity() {
   override fun onCreate(savedInstanceState: Bundle?) {
      super.onCreate(savedInstanceState)
      setContentView(R.layout.activity_second)
   }
}

Step 5 − Add the following code to androidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.example.q11">
   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:roundIcon="@mipmap/ic_launcher_round"
      android:supportsRtl="true"
      android:theme="@style/AppTheme">
      <activity android:name=".MainActivity">
         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>
      </activity>
   </application>
</manifest>

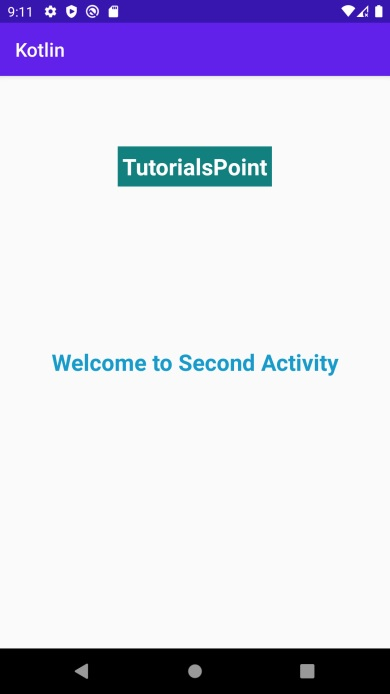

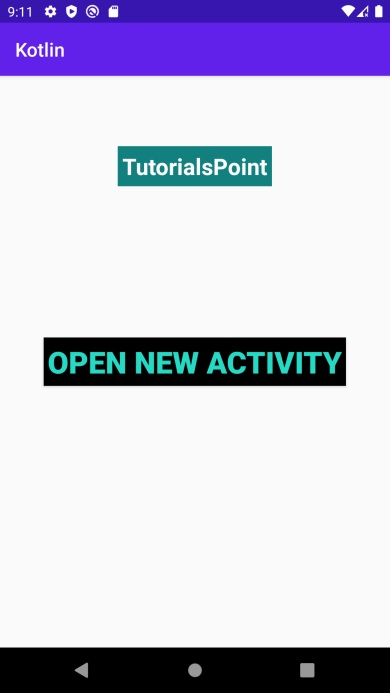

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from android studio, open one of your project's activity files and click the Run icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen.

Click here to download the project code.
