How to set margin of ImageView using code in Android?


This example demonstrates how do I set margin of ImageView using code in android.

Step 1 − Create a new project in Android Studio, go to File ⇒ New Project and fill all required details to create a new project.

Step 2 − Add the following code to res/layout/activity_main.xml.

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   tools:context=".MainActivity">

   <ImageView
      android:id="@+id/imageView"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:background="@drawable/image"/>

</RelativeLayout>

Step 3 – Copy an image file and paste in the res/drawable

Step 4 − Add the following code to src/MainActivity.java

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
import android.widget.ImageView;
import android.widget.RelativeLayout;

public class MainActivity extends AppCompatActivity {

   ImageView imageView;

   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
      imageView = findViewById(R.id.imageView);
      final RelativeLayout.LayoutParams layoutparams = (RelativeLayout.LayoutParams)imageView.getLayoutParams();
      layoutparams.setMargins(100,100,100,100);
      imageView.setLayoutParams(layoutparams);
   }
}

Step 5 - Add the following code to androidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android"
   package="app.com.sample">

   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:roundIcon="@mipmap/ic_launcher_round"
      android:supportsRtl="true"
      android:theme="@style/AppTheme">
      <activity android:name=".MainActivity">
         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>
      </activity>
   </application>
</manifest>

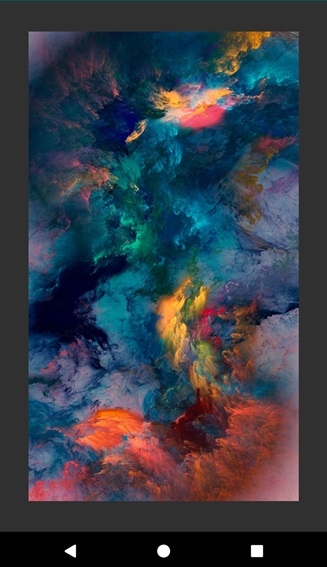

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from android studio, open one of your project's activity files and click Run  Icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen –
