How to get the width and height of an android.widget.ImageView in Kotlin?

Kotlin Apps/ApplicationsMobile Development

This example demonstrates how to get the width and height of an android.widget.ImageView in Kotlin.

Step 1 − Create a new project in Android Studio, go to File ? New Project and fill all required details to create a new project.

Step 2 − Add the following code to res/layout/activity_main.xml.

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:gravity="center_horizontal"
   android:orientation="vertical"
   android:padding="8dp"
   tools:context=".MainActivity">
   <ImageView
      android:id="@+id/imageView"
      android:layout_width="match_parent"
      android:layout_height="400dp"
      android:src="@drawable/image" />
   <Button
      android:id="@+id/btnCheckSize"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_marginTop="20sp"
      android:text="Check ImageView size"
      android:textSize="12sp"
      android:textStyle="bold" />
   <TextView
      android:id="@+id/textView"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_marginTop="10dp"
      android:text=""
      android:textColor="@android:color/background_dark"
      android:textSize="16sp"
      android:textStyle="bold" />
</LinearLayout>

Step 3 − Add the following code to src/MainActivity.kt

import android.os.Bundle
import android.widget.Button
import android.widget.ImageView
import android.widget.TextView
import androidx.appcompat.app.AppCompatActivity
class MainActivity : AppCompatActivity() {
   lateinit var imageView: ImageView
   lateinit var textView: TextView
   lateinit var button: Button
   override fun onCreate(savedInstanceState: Bundle?) {
      super.onCreate(savedInstanceState)
      setContentView(R.layout.activity_main)
      imageView = findViewById(R.id.imageView)
      textView = findViewById(R.id.textView)
      button = findViewById(R.id.btnCheckSize)
      button.setOnClickListener { textView.text = String.format("Size of ImageView:\nHeight: %s\nWidth:
      %s", imageView.width.toString(), imageView.height.toString()) }
   }
}

Step 4 − Add the following code to androidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" package="app.com.q1">
   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:roundIcon="@mipmap/ic_launcher_round"
      android:supportsRtl="true"
      android:theme="@style/AppTheme">
      <activity android:name=".MainActivity">
         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>
      </activity>
   </application>
</manifest>

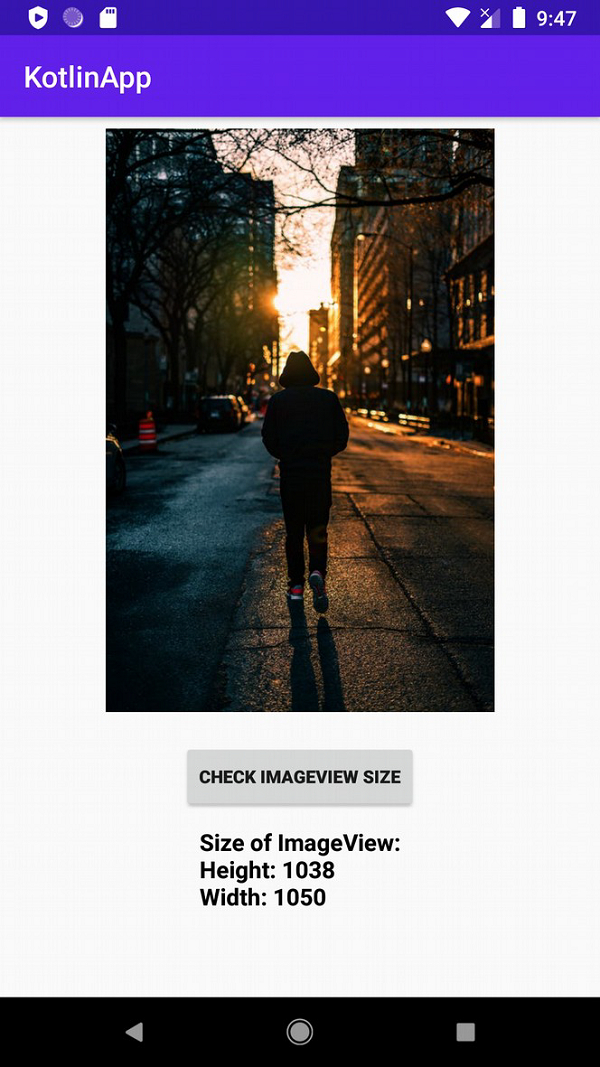

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from android studio, open one of your project's activity files and click the Run icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen
