How to enable back button action in action bar?

Android Mobile Development Apps/Applications

This example demonstrates How to enable back button action in the action bar.

Step 1 − Create a new project in Android Studio, go to File ⇒ New Project and fill all required details to create a new project.

Step 2 − Add the following code to res/layout/activity_main.xml.

<?xml version = "1.0" encoding = "utf-8"?>
<LinearLayout xmlns:android = "http://schemas.android.com/apk/res/android"
   xmlns:app = "http://schemas.android.com/apk/res-auto"
   xmlns:tools = "http://schemas.android.com/tools"
   android:layout_width = "match_parent"
   android:gravity = "center"
   android:layout_height = "match_parent"
   tools:context = ".MainActivity">
   <TextView
      android:id = "@+id/text"
      android:textSize = "30sp"
      android:layout_width = "match_parent"
      android:layout_height = "match_parent" />
</LinearLayout>

In the above code, we have taken a text view.

Step 3 − Add the following code to src/MainActivity.java

package com.example.myapplication;
import android.annotation.SuppressLint;
import android.app.ActivityManager;
import android.app.admin.DevicePolicyManager;
import android.content.ComponentName;
import android.content.Context;
import android.content.Intent;
import android.net.wifi.WifiInfo;
import android.net.wifi.WifiManager;
import android.os.Build;
import android.os.Bundle;
import android.support.annotation.RequiresApi;
import android.support.v7.app.AppCompatActivity;
import android.view.MenuItem;
import android.view.View;
import android.widget.TextView;
public class MainActivity extends AppCompatActivity {
   TextView textView;
   @SuppressLint("RestrictedApi")
   @RequiresApi(api = Build.VERSION_CODES.N)
   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
      textView = findViewById(R.id.text);
      getSupportActionBar().setDisplayHomeAsUpEnabled(true);
      getSupportActionBar().setTitle("Home");
      getSupportActionBar().setSubtitle("sairam");
   }
   @Override
   public boolean onOptionsItemSelected(MenuItem menuItem) {
      if (menuItem.getItemId() = = android.R.id.home) {
         finish();
      }
      return super.onOptionsItemSelected(menuItem);
   }
}

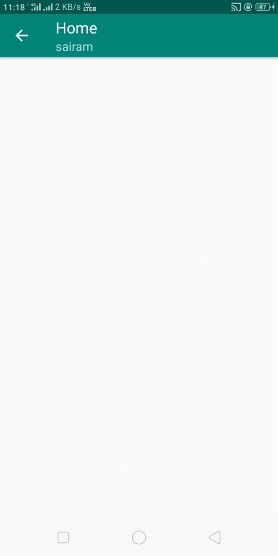

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from the android studio, open one of your project's activity files and click Run icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen –

Click here to download the project code
