How to create a smooth image rotation in Android using Kotlin?

This example demonstrates how to create a smooth image rotation in Android using Kotlin.

Step 1  − Create a new project in Android Studio, go to File? New Project and fill all required details to create a new project.

Step 2 − Add the following code to res/layout/activity_main.xml.

Example

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:padding="16dp"
   tools:context=".MainActivity">
   <ImageView
      android:id="@+id/imageView"
      android:layout_width="match_parent"
      android:layout_height="400dp"
      android:layout_centerInParent="true"
      android:src="@drawable/circle" />
   <Button
      android:id="@+id/btnRotate"
      android:layout_width="wrap_content"
      android:layout_height="wrap_content"
      android:layout_below="@id/imageView"
      android:layout_centerInParent="true"
      android:layout_marginBottom="10dp"
      android:text="Rotate" />
</RelativeLayout>

Step 3 − Add the following code to src/MainActivity.kt

Example

import android.os.Bundle
import android.view.animation.AnimationUtils
import android.widget.Button
import android.widget.ImageView
import androidx.appcompat.app.AppCompatActivity
class MainActivity : AppCompatActivity() {
   lateinit var imageView: ImageView
   lateinit var button: Button
   override fun onCreate(savedInstanceState: Bundle?) {
      super.onCreate(savedInstanceState)
      setContentView(R.layout.activity_main)
      title = "KotlinApp"
      imageView = findViewById(R.id.imageView)
      button = findViewById(R.id.btnRotate)
      button.setOnClickListener {
         val animation = AnimationUtils.loadAnimation(applicationContext, R.anim.rotate)
         imageView.startAnimation(animation)
      }
   }
}

Step 4 − Add the following code to androidManifest.xml

Example

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" package="app.com.myapplication">
   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:roundIcon="@mipmap/ic_launcher_round"
      android:supportsRtl="true"
      android:theme="@style/AppTheme">
      <activity android:name=".MainActivity">
         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>
      </activity>
   </application>
</manifest>

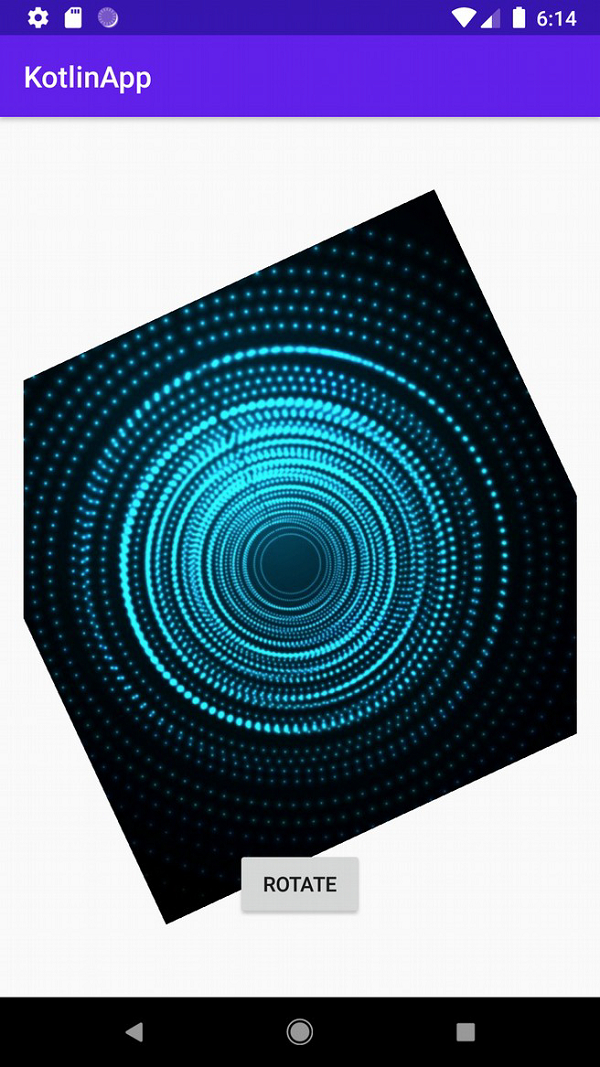

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from android studio, open one of your project's activity files and click the Run icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen
