How to convert Bitmap to drawable in Android?
This example demonstrates how do I convert Bitmap to drawable in android.
Step 1 − Create a new project in Android Studio, go to File ⇒ New Project and fill all required details to create a new project.
Step 2 − Add the following code to res/layout/activity_main.xml.
<?xml version="1.0" encoding="utf-8"?> <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" tools:context=".MainActivity"> <Button android:id="@+id/btnConvert" android:layout_centerHorizontal="true" android:layout_marginTop="20dp" android:layout_width="wrap_content" android:layout_height="wrap_content" android:text="Convert bitmap to Drawable" /> <ImageView android:id="@+id/imageView" android:layout_below="@id/btnConvert" android:layout_marginTop="10dp" android:layout_width="match_parent" android:layout_height="match_parent"/>
Step 3 − Add the following code to src/MainActivity.java
import androidx.appcompat.app.AppCompatActivity;
import android.graphics.Bitmap;
import android.graphics.drawable.BitmapDrawable;
import android.graphics.drawable.Drawable;
import android.os.Bundle;
import android.view.View;
import android.widget.Button;
import android.widget.ImageView;
public class MainActivity extends AppCompatActivity {
ImageView imageView;
Button button;
Bitmap bitmap;
Drawable drawable;
@Override
protected void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.activity_main);
imageView = findViewById(R.id.imageView);
button = findViewById(R.id.btnConvert);
button.setOnClickListener(new View.OnClickListener() {
@Override
public void onClick(View v) {
drawable = getApplicationContext().getResources().getDrawable(R.drawable.image);
bitmap = ((BitmapDrawable)drawable).getBitmap();
Drawable d = new BitmapDrawable(bitmap);
imageView.setImageDrawable(d);
}
});
}
}Step 4 − Add the following code to androidManifest.xml
<?xml version="1.0" encoding="utf-8"?> <manifest xmlns:android="http://schemas.android.com/apk/res/android" package="app.com.sample"> <application android:allowBackup="true" android:icon="@mipmap/ic_launcher" android:label="@string/app_name" android:roundIcon="@mipmap/ic_launcher_round" android:supportsRtl="true" android:theme="@style/AppTheme"> <activity android:name=".MainActivity"> <intent-filter> <action android:name="android.intent.action.MAIN" /> <category android:name="android.intent.category.LAUNCHER" /> </intent-filter> </activity> </application> </manifest>
Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from android studio, open one of your project's activity files and click Run

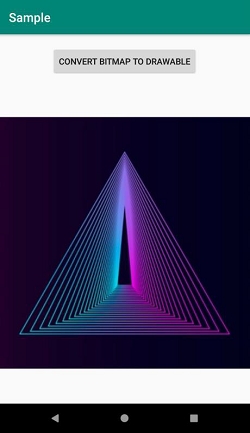

icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen −
Click here to download the project code.
