How to clear an ImageView in Android using Kotlin?

Kotlin AndroidApps/ApplicationsMobile Development

This example demonstrates how to clear an ImageView in Android using Kotlin.

Step 1 − Create a new project in Android Studio, go to File? New Project and fill all required details to create a new project.

Step 2 − Add the following code to res/layout/activity_main.xml.

Example

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   tools:context=".MainActivity">
<Button
   android:id="@+id/button"
   android:layout_width="wrap_content"
   android:layout_height="wrap_content"
   android:layout_alignParentBottom="true"
   android:layout_centerHorizontal="true"
   android:layout_marginTop="10dp"
   android:onClick="clickHere"
   android:text="Click here" />
<ImageView
   android:id="@+id/imageView"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   android:layout_above="@+id/button"
   android:layout_centerInParent="true"
   android:background="@drawable/image" />
</RelativeLayout>

Step 3 − Add the following code to src/MainActivity.kt

import androidx.appcompat.app.AppCompatActivity
import android.os.Bundle
import android.view.View
import android.widget.ImageView
import android.widget.Toast
class MainActivity : AppCompatActivity() {
   lateinit var imageView: ImageView
   override fun onCreate(savedInstanceState: Bundle?) {
      super.onCreate(savedInstanceState)
      setContentView(R.layout.activity_main)
      title = "KotlinApp"
      imageView = findViewById(R.id.imageView)
   }
   fun clickHere(view: View) {
      imageView.setBackgroundDrawable(null)
      Toast.makeText(this, "Image cleared", Toast.LENGTH_SHORT).show()
   }
}

Step 4 − Add the following code to androidManifest.xml

<?xml version="1.0" encoding="utf-8"?>
<manifest xmlns:android="http://schemas.android.com/apk/res/android" package="com.example.q11">
   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:roundIcon="@mipmap/ic_launcher_round"
      android:supportsRtl="true"
      android:theme="@style/AppTheme">
      <activity android:name=".MainActivity">
         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>
      </activity>
   </application>
</manifest>

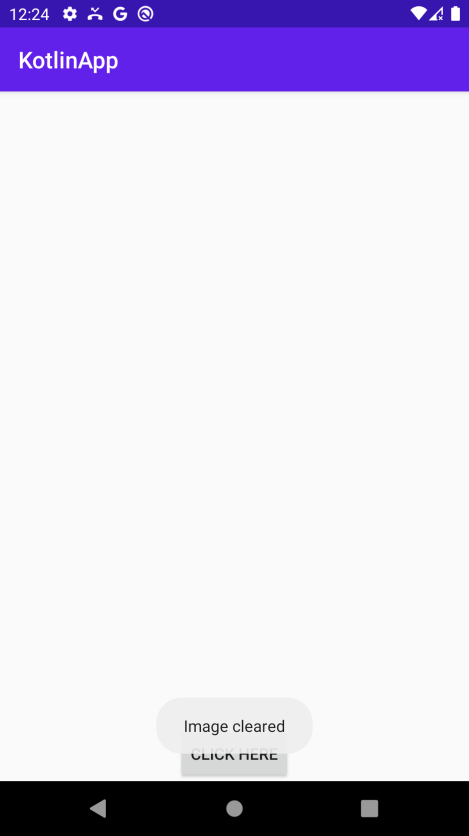

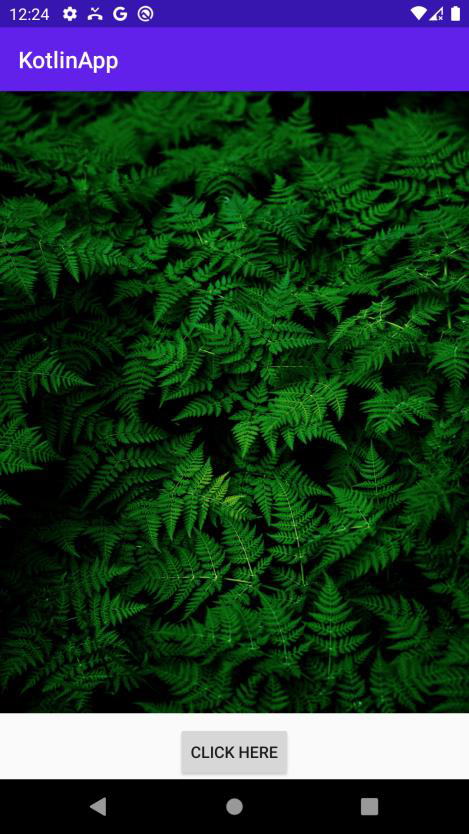

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from android studio, open one of your project's activity files and click the Run icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen


Click here to download the project code.
