How can I set a Border for an ImageView in Android?

AndroidApps/ApplicationsMobile Development

This example demonstrates how do I can I set a border for an ImageView in android.

Step 1 − Create a new project in Android Studio, go to File ⇒ New Project and fill all required details to create a new project

Step 2 − Add the following code to res/layout/activity_main.xml.

<?xml version="1.0" encoding="utf-8"?>
<RelativeLayout
   xmlns:android="http://schemas.android.com/apk/res/android"
   xmlns:tools="http://schemas.android.com/tools"
   android:layout_width="match_parent"
   android:layout_height="match_parent"
   tools:context=".MainActivity">
   <ImageView
      android:layout_width="wrap_content"
      android:layout_height="match_parent"
      android:background="@layout/image_border"
      android:padding="7dp"
      android:scaleType="centerInside"
      android:src="@drawable/image" />
</RelativeLayout>

Step 3 − Add the following code to src/MainActivity.java

import android.support.v7.app.AppCompatActivity;
import android.os.Bundle;
public class MainActivity extends AppCompatActivity {
   @Override
   protected void onCreate(Bundle savedInstanceState) {
      super.onCreate(savedInstanceState);
      setContentView(R.layout.activity_main);
   }
}

Step 4 − Create a layout from in res/layout and add the following code in res/layout/image_border.xml

<?xml version="1.0" encoding="utf-8"?>
<shape
   xmlns:android="http://schemas.android.com/apk/res/android"
   android:layout_height="match_parent"
   android:layout_width="match_parent">
   <stroke
      android:width="8dp"
      android:color="#01fee9" />
</shape>

Step 5 − Add the following code to androidManifest.xml

<manifest xmlns:android="http://schemas.android.com/apk/res/android" package="app.com.sample">
   <application
      android:allowBackup="true"
      android:icon="@mipmap/ic_launcher"
      android:label="@string/app_name"
      android:roundIcon="@mipmap/ic_launcher_round"
      android:supportsRtl="true"
      android:theme="@style/AppTheme">
      <activity android:name=".MainActivity">
         <intent-filter>
            <action android:name="android.intent.action.MAIN" />
            <category android:name="android.intent.category.LAUNCHER" />
         </intent-filter>
      </activity>
   </application>
</manifest>

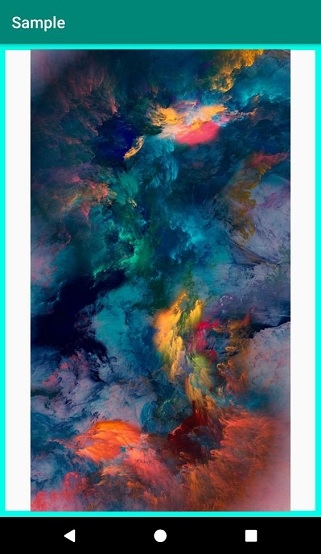

Let's try to run your application. I assume you have connected your actual Android Mobile device with your computer. To run the app from android studio, open one of your project's activity files and click Run  icon from the toolbar. Select your mobile device as an option and then check your mobile device which will display your default screen −

Click here to download the project code.
