Difference Between Paging and Segmentation in OS

MemoryComputersHardware

In this post, we will understand the difference between paging and segmentation in operating system −

Paging

  • The address space of a process is broken into fixed sized blocks.

  • These fixed size blocks are known as pages.

  • The operating system divides the memory blocks into pages.

  • The size of the page is determined based on the memory available.

  • This technique is quick in terms of memory access.

  • It can cause internal fragmentation since some pages would not be utilized as much as the other pages.

  • During the process of paging, a logical address is divided into page number and page offset.

  • A page table is used to store the page data.

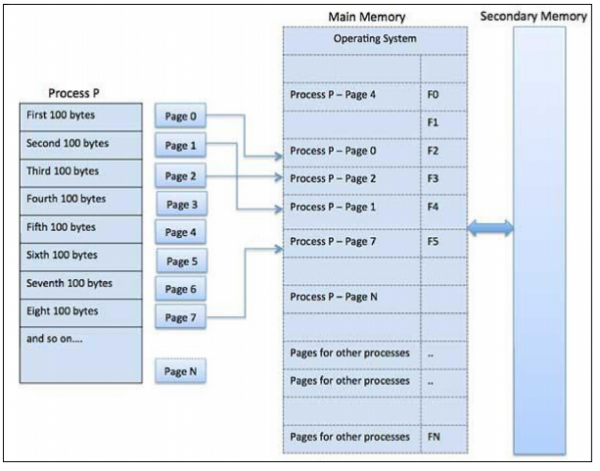

This is how Paging works −

Segmentation

  • In this method, the address space of a process is broken down into varying sized blocks.

  • These varying sized blocks are known as sections.

  • A compiler is responsible in determining the size of the segment, the virtual address and the actual address.

  • The size of the section is determined by the user.

  • The process of segmentation is slower in comparison to paging.

  • It can result in external fragmentation since some memory blocks may not be used at all.

  • During this process, a logical address gets divided into a section number and a section offset.

  • A segmentation table can be used to store the segmentation data.

This is how Segmentation techniques works with Segment Map Table −
