Where would the image be formed by a convex mirror if the object is placed:(a) between infinity and pole of the mirror?(b) at infinity?Draw labelled ray-diagrams to show the formation of image in both the case.

The image formed by a convex mirror if the object is placed:

(a) between infinity and pole of the mirror- will be virtual, magnified, and behind the mirror.

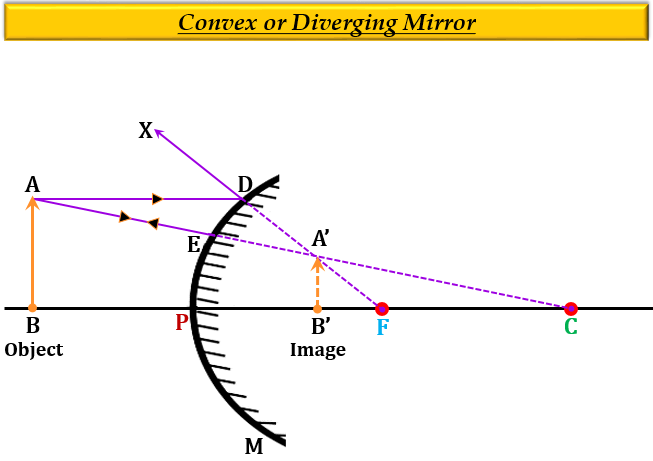

The ray diagram to show the formation of the image is given below:-

The image formed by a convex mirror if the object is placed:

(b) at infinity- will be virtual, diminished, and behind the mirror.

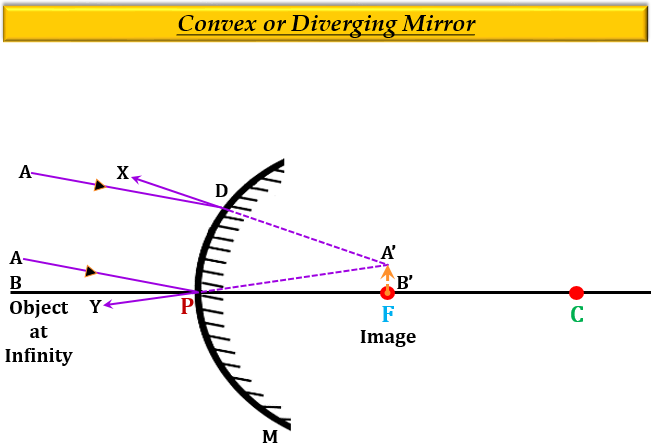

The ray diagram to show the formation of the image is given below:-
