What is the shape of a current-carrying conductor whose magnetic field pattern resembles that of a bar magnet?

Academic Physics NCERT Class 10

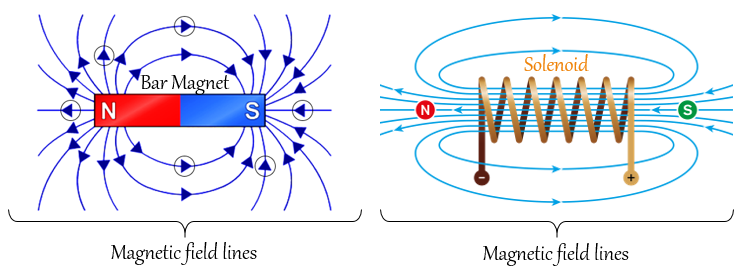

The magnetic field produced by a current-carrying solenoid resembles the magnetic field pattern produced by a bar magnet. Hence, the shape of a current-carrying conductor is a solenoid.

Image is posted for reference only

Tutorialspoint

Simply Easy Learning

Updated on: 10-Oct-2022

176 Views

Related Articles
The shape of the earth’s magnetic field resembles that of an imaginary:(a) U-shaped magnet (b) Straight conductor carrying current (c)Current-carrying circular coil (d) Bar magnet
Magnetic Field around a Current Carrying Conductor
(a) What is a solenoid? Draw a sketch to show the magnetic field pattern produced by a current-carrying solenoid.(b) Name the type of magnet with which the magnetic field pattern of a current-carrying solenoid resembles. (c) What is the shape of field lines inside a current-carrying solenoid? What does the pattern of field lines inside a current-carrying solenoid indicate? (d) List three ways in which the magnetic field strength of a current-carrying solenoid can be increased? (e) What type of core should be put inside a current-carrying solenoid to make an electromagnet?
What happens when a current-carrying conductor is placed in a magnetic field?
Force on a Current Carrying Conductor in a Magnetic Field
State the form of magnetic field lines around a straight current-carrying conductor.
What is a solenoid? Draw the pattern of magnetic field lines of (i) a current-carrying solenoid and (ii) a bar magnet. List two distinguishing features between the two fields.
In the kicking wire experiment, the current carrying wire gets deflected due to the magnetic field of the horse shoe magnet.\nIs the deflection in the wire due to the fact that a current carrying conductor behaves as a bar magnet when current is passed through it ?
(a) A current-carrying conductor is placed perpendicularly in a magnetic field. Name the rule which can be used to find the direction of force acting on the conductor.(b) State two ways to increase the force on a current-carrying conductor in a magnetic field. (c) Name one device whose working depends on the force exerted on a current-carrying coil placed in a magnetic field.
When is the force experienced by a current-carrying conductor placed in a magnetic field largest?
What are the two ways in which you can trace the magnetic field pattern of a bar magnet?
Name the rule for finding the direction of magnetic field produced by a straight current-carrying conductor.
(a) Draw a sketch to show the magnetic lines of force due to a current-carrying straight conductor.(b) Name and state the rule to determine the direction of magnetic field around a straight current-carrying conductor.
Draw magnetic field lines around a bar magnet.
State the rule to determine the direction of a $(i)$. magnetic field produced around a straight conductor-carrying current,$(ii)$. the force experienced by a current-carrying straight conductor placed in a magnetic field which is perpendicular to it, and$(iii)$. current induced in a coil due to its rotation in a magnetic field.
