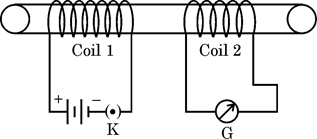

Two coils of insulated copper wire are wound over a non-conducting cylinder as shown. Coil 1 has comparative large number of turns. State your observations, when
(i) Key K is closed.(ii) Key K is opened.Give reason for each of your observations."
(i) When key K is closed, the galvanometer needle shows deflection for a very short time.
Reason: When key K is closed, magnetic field lines around coil 2 increase momentarily. This causes an induced current to flow through it and therefore deflection occurs in one direction.
(ii) When key K is opened, the galvanometer needle again shows deflection for a very short time but in the opposite direction.
Reason: When key K is opened, magnetic field lines around coil 2 decreases momentarily. This causes an induced current to flow in opposite direction. Therefore deflection occurs in opposite direction.
