The image formed by a concave mirror is virtual, erect and magnified. The position of object is:(a) at focus (b) between focus and centre of curvature(c) at pole (d) between pole and focus

Academic Physics NCERT Class 10

(d) Between the pole and the focus

Explanation

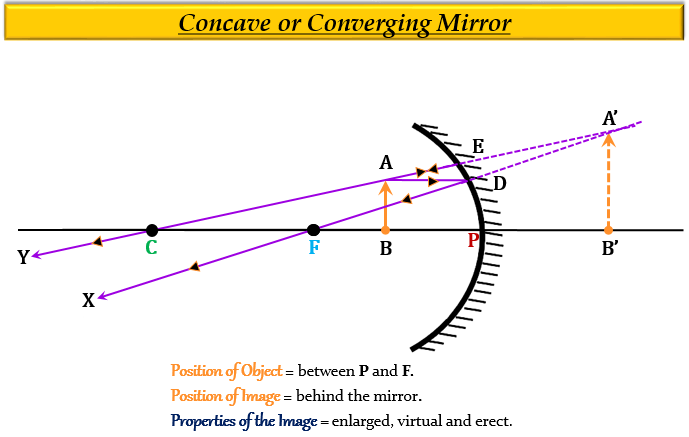

For an object placed between the pole $(P)$ and the focus $(F)$, the image formed by a concave mirror is virtual and erect, bigger than the object (enlarged) and behind the mirror.

Tutorialspoint

e

Updated on: 10-Oct-2022

85 Views

A concave mirror produces magnification of +4. The object is placed:(a) at the focus (b) between focus and centre of curvature(c) between focus and pole (d) beyond the centre of curvature
The image formed by a concave mirror is observed to be virtual, erect and larger than the object. Where should be the position of the object?$(a)$. Between the principal focus and the centre of curvature$(b)$. At the centre of curvature$(c)$. beyond the centre of curvature$(d)$. Between the pole of the mirror and its principal focus.
The image formed by a concave mirror is real, inverted and highly diminished (much smaller than the object). The object must be:(a) between pole and focus (b) at focus(c) at the centre of curvature (d) at infinity
In the concave reflector of a torch, the bulb is placed:(a) between the pole and focus of reflector (b) at the focus of reflector(c) between focus and centre of curvature of reflector (d) at the centre of curvature of reflector
In order to obtain a magnification of −2 (minus 2) with a concave mirror, the object should be placed:(a) between pole and focus (b) between focus and centre of curvature(c) at the centre of curvature (d) beyond the centre of curvature
The image formed by a concave mirror is real, inverted and of the same size as the object. The position of the object must then be:(a) at the focus (b) between the centre of curvature and focus(c) at the centre of curvature (d) beyond the centre of curvature
List four properties of the image formed by a concave mirror when an object is placed between the focus and pole of the mirror.
The real image formed by a concave mirror is larger than the object when the object is:(a) at a distance equal to radius of curvature(b) at a distance less than the focal length (c) between focus and centre of curvature(d) at a distance greater than radius of curvature
When an object is kept within the focus of a concave mirror, an enlarged image is formed behind the mirror. This image is:(a) real (b) inverted (c) virtual and inverted (d) virtual and erect
The real image formed by a concave mirror is smaller than the object if the object is:(a) between centre of curvature and focus (b) at a distance greater than radius of curvature (c) at a distance equal to radius of curvature (d) at a distance equal to focal length
If an object is placed at the focus of a concave mirror, where is the image formed?
Make labelled ray diagrams to illustrate the formation of:(a) a real image by a converging mirror.(b) a virtual image by a converging mirror.Mark clearly the pole, focus, centre of curvature and position of object in each case.
When an object is kept at any distance in front of a concave lens, the image formed is always:(a) virtual, erect and magnified (b) virtual, inverted and diminished(c) virtual, erect and diminished (d) virtual, erect and same size as object
In order to obtain a magnification of, −0.6 (minus 0.6) with a concave mirror, the object must be placed:at the focusbetween pole and focusbetween focus and centre of curvaturebeyond the centre of curvature
A point object is placed at a distance of 20 cm from a convex mirror of focal length 20 cm. The image will form at:(a) at infinity (b) at focus (c) at the pole (d) behind the mirror
