A torch requires 3 cells. Show the arrangement of the cells, with a diagram, inside the torch so that the bulb glows.

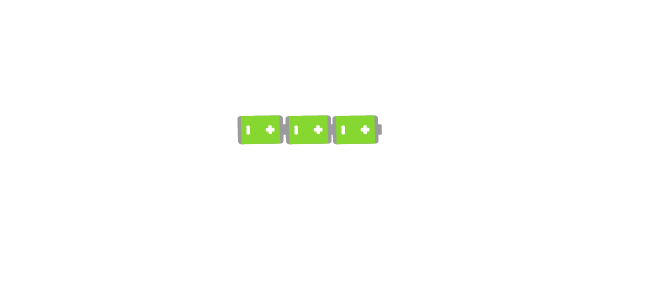

The cells will be arranged as below:
The positive terminal of the first cell will be connected to the negative terminal of the second cell and the positive terminal of the second cell will be connected to the negative terminal of the third cell. Such an arrangement will make the bulb glow.
