Introduction

The JRadioButtonMenuItem class represents a check box which can be included in a menu. Selecting the check box in the menu changes control's state from on to off or from off to on.

Class declaration

Following is the declaration for javax.swing.JRadioButtonMenuItem class:

public class JRadioButtonMenuItem
   extends JMenuItem
      implements Accessible

Class constructors

S.N.Constructor & Description
1JRadioButtonMenuItem()
Creates a JRadioButtonMenuItem with no set text or icon.
2JRadioButtonMenuItem(Action a)
Creates a radio button menu item whose properties are taken from the Action supplied.
3JRadioButtonMenuItem(Icon icon)
Creates a JRadioButtonMenuItem with an icon.
4JRadioButtonMenuItem(Icon icon, boolean selected)
Creates a radio button menu item with the specified image and selection state, but no text.
5JRadioButtonMenuItem(String text)
Creates a JRadioButtonMenuItem with text.
6JRadioButtonMenuItem(String text, boolean selected)
Creates a radio button menu item with the specified text and selection state.
7JRadioButtonMenuItem(String text, Icon icon)
Creates a radio button menu item with the specified text and Icon.
8JRadioButtonMenuItem(String text, Icon icon, boolean selected)
Creates a radio button menu item that has the specified text, image, and selection state.

Class methods

S.N.Method & Description
1AccessibleContext getAccessibleContext()
Gets the AccessibleContext associated with this JRadioButtonMenuItem.
2String getUIClassID()
Returns the name of the L&F class that renders this component.
3protected String paramString()
Returns a string representation of this JRadioButtonMenuItem.

Methods inherited

This class inherits methods from the following classes:

  • javax.swing.JMenuItem

  • javax.swing.JAbstractButton

  • javax.swing.JComponent

  • java.awt.Container

  • java.awt.Component

  • java.lang.Object

JRadioButtonMenuItem Example

Create the following java program using any editor of your choice in say D:/ > SWING > com > tutorialspoint > gui >

SwingMenuDemo.java
package com.tutorialspoint.gui;

import java.awt.*;
import java.awt.event.*;

public class SwingMenuDemo {
   private JFrame mainFrame;
   private JLabel headerLabel;
   private JLabel statusLabel;
   private JPanel controlPanel;

   public SwingMenuDemo(){
      prepareGUI();
   }

   public static void main(String[] args){
      SwingMenuDemo  swingMenuDemo = new SwingMenuDemo();
      swingMenuDemo.showMenuDemo();
   }

   private void prepareGUI(){
      mainFrame = new JFrame("Java SWING Examples");
      mainFrame.setSize(400,400);
      mainFrame.setLayout(new GridLayout(3, 1));

      headerLabel = new JLabel("",JLabel.CENTER );
      statusLabel = new JLabel("",JLabel.CENTER);

      statusLabel.setSize(350,100);
      mainFrame.addWindowListener(new WindowAdapter() {
         public void windowClosing(WindowEvent windowEvent){
            System.exit(0);
         }
      });
      controlPanel = new JPanel();
      controlPanel.setLayout(new FlowLayout());

      mainFrame.add(headerLabel);
      mainFrame.add(controlPanel);
      mainFrame.add(statusLabel);
      mainFrame.setVisible(true);
   }

   private void showMenuDemo(){
      //create a menu bar
      final JMenuBar menuBar = new JMenuBar();

      //create menus
      JMenu fileMenu = new JMenu("File");
      JMenu editMenu = new JMenu("Edit");
      final JMenu aboutMenu = new JMenu("About");
      final JMenu linkMenu = new JMenu("Links");

      //create menu items
      JMenuItem newMenuItem = new JMenuItem("New");
      newMenuItem.setMnemonic(KeyEvent.VK_N);
      newMenuItem.setActionCommand("New");

      JMenuItem openMenuItem = new JMenuItem("Open");
      openMenuItem.setActionCommand("Open");

      JMenuItem saveMenuItem = new JMenuItem("Save");
      saveMenuItem.setActionCommand("Save");

      JMenuItem exitMenuItem = new JMenuItem("Exit");
      exitMenuItem.setActionCommand("Exit");

      JMenuItem cutMenuItem = new JMenuItem("Cut");
      cutMenuItem.setActionCommand("Cut");

      JMenuItem copyMenuItem = new JMenuItem("Copy");
      copyMenuItem.setActionCommand("Copy");

      JMenuItem pasteMenuItem = new JMenuItem("Paste");
      pasteMenuItem.setActionCommand("Paste");

      MenuItemListener menuItemListener = new MenuItemListener();

      newMenuItem.addActionListener(menuItemListener);
      openMenuItem.addActionListener(menuItemListener);
      saveMenuItem.addActionListener(menuItemListener);
      exitMenuItem.addActionListener(menuItemListener);
      cutMenuItem.addActionListener(menuItemListener);
      copyMenuItem.addActionListener(menuItemListener);
      pasteMenuItem.addActionListener(menuItemListener);

      final JCheckBoxMenuItem showWindowMenu =
         new JCheckBoxMenuItem("Show About", true);
      showWindowMenu.addItemListener(new ItemListener() {
         public void itemStateChanged(ItemEvent e) {
            if(showWindowMenu.getState()){
               menuBar.add(aboutMenu);
            }else{
               menuBar.remove(aboutMenu);
            }
         }
      });

      final JRadioButtonMenuItem showLinksMenu =
         new JRadioButtonMenuItem("Show Links", true);
      showLinksMenu.addItemListener(new ItemListener() {
         public void itemStateChanged(ItemEvent e) {
            if(menuBar.getMenu(3)!= null){
               menuBar.remove(linkMenu);
               mainFrame.repaint();
            }else{
               menuBar.add(linkMenu);
               mainFrame.repaint();
            }
         }
      });

      //add menu items to menus
      fileMenu.add(newMenuItem);
      fileMenu.add(openMenuItem);
      fileMenu.add(saveMenuItem);
      fileMenu.addSeparator();
      fileMenu.add(showWindowMenu);
      fileMenu.addSeparator();
      fileMenu.add(showLinksMenu);
      fileMenu.addSeparator();
      fileMenu.add(exitMenuItem);
      editMenu.add(cutMenuItem);
      editMenu.add(copyMenuItem);
      editMenu.add(pasteMenuItem);

      //add menu to menubar
      menuBar.add(fileMenu);
      menuBar.add(editMenu);
      menuBar.add(aboutMenu);
      menuBar.add(linkMenu);

      //add menubar to the frame
      mainFrame.setJMenuBar(menuBar);
      mainFrame.setVisible(true);
   }

   class MenuItemListener implements ActionListener {
      public void actionPerformed(ActionEvent e) {
         statusLabel.setText(e.getActionCommand()
         + " JMenuItem clicked.");
      }
   }
}

Compile the program using command prompt. Go to D:/ > SWING and type the following command.

D:\SWING>javac com\tutorialspoint\gui\SwingMenuDemo.java

If no error comes that means compilation is successful. Run the program using following command.

D:\SWING>java com.tutorialspoint.gui.SwingMenuDemo

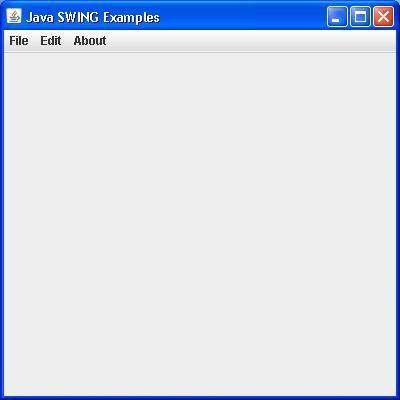

Verify the following output. (Click on File Menu. Unselect "Show Link" menu item.)

SWING JRadioButtonMenuItem
