Introduction

The JMenuItem class represents the actual item in a menu. All items in a menu should derive from class JMenuItem, or one of its subclasses. By default, it embodies a simple labeled menu item.

Class declaration

Following is the declaration for javax.swing.JMenuItem class:

public class JMenuItem
   extends AbstractButton
      implements Accessible, MenuElement

Class constructors

S.N.Constructor & Description
1JMenuItem()
Creates a JMenuItem with no set text or icon.
2JMenuItem(Action a)
Creates a menu item whose properties are taken from the specified Action.
3JMenuItem(Icon icon)
Creates a JMenuItem with the specified icon.
4JMenuItem(String text)
Creates a JMenuItem with the specified text.
5JMenuItem(String text, Icon icon)
Creates a JMenuItem with the specified text and icon.
6JMenuItem(String text, int mnemonic)
Creates a JMenuItem with the specified text and keyboard mnemonic.

Class methods

S.N.Method & Description
1protected void actionPropertyChanged(Action action, String propertyName)
Updates the button's state in response to property changes in the associated action.
2void addMenuDragMouseListener(MenuDragMouseListener l)
Adds a MenuDragMouseListener to the menu item.
3void addMenuKeyListener(MenuKeyListener l)
Adds a MenuKeyListener to the menu item.
4protected void configurePropertiesFromAction(Action a)
Sets the properties on this button to match those in the specified Action.
5protected void fireMenuDragMouseDragged(MenuDragMouseEvent event)
Notifies all listeners that have registered interest for notification on this event type.
6protected void fireMenuDragMouseEntered(MenuDragMouseEvent event)
Notifies all listeners that have registered interest for notification on this event type.
7protected void fireMenuDragMouseExited(MenuDragMouseEvent event)
Notifies all listeners that have registered interest for notification on this event type.
8protected void fireMenuDragMouseReleased(MenuDragMouseEvent event)
Notifies all listeners that have registered interest for notification on this event type.
9protected void fireMenuKeyPressed(MenuKeyEvent event)
Notifies all listeners that have registered interest for notification on this event type.
10protected void fireMenuKeyReleased(MenuKeyEvent event)
Notifies all listeners that have registered interest for notification on this event type.
11protected void fireMenuKeyTyped(MenuKeyEvent event)
Notifies all listeners that have registered interest for notification on this event type.
12KeyStroke getAccelerator()
Returns the KeyStroke which serves as an accelerator for the menu item.
13AccessibleContext getAccessibleContext()
Returns the AccessibleContext associated with this JMenuItem.
14Component getComponent()
Returns the java.awt.Component used to paint this object.
15MenuDragMouseListener[] getMenuDragMouseListeners()
Returns an array of all the MenuDragMouseListeners added to this JMenuItem with addMenuDragMouseListener().
16MenuKeyListener[] getMenuKeyListeners()
Returns an array of all the MenuKeyListeners added to this JMenuItem with addMenuKeyListener().
17MenuElement[] getSubElements()
This method returns an array containing the sub-menu components for this menu component.
18String getUIClassID()
Returns the suffix used to construct the name of the L&F class used to render this component.
19protected void init(String text, Icon icon)
Initializes the menu item with the specified text and icon.
20boolean isArmed()
Returns whether the menu item is "armed".
21void menuSelectionChanged(boolean isIncluded)
Called by the MenuSelectionManager when the MenuElement is selected or unselected.
22protected String paramString()
Returns a string representation of this JMenuItem.
23void processKeyEvent(KeyEvent e, MenuElement[] path, MenuSelectionManager manager)
Processes a key event forwarded from the MenuSelectionManager and changes the menu selection, if necessary, by using MenuSelectionManager's API.
24void processMenuDragMouseEvent(MenuDragMouseEvent e)
Handles mouse drag in a menu.
25void processMenuKeyEvent(MenuKeyEvent e)
Handles a keystroke in a menu.
26void processMouseEvent(MouseEvent e, MenuElement[] path, MenuSelectionManager manager)
Processes a mouse event forwarded from the MenuSelectionManager and changes the menu selection, if necessary, by using the MenuSelectionManager's API.
27void removeMenuDragMouseListener(MenuDragMouseListener l)
Removes a MenuDragMouseListener from the menu item.
28void removeMenuKeyListener(MenuKeyListener l)
Removes a MenuKeyListener from the menu item.
29void setAccelerator(KeyStroke keyStroke)
Sets the key combination which invokes the menu item's action listeners without navigating the menu hierarchy.
30void setArmed(boolean b)
Identifies the menu item as "armed".
31void setEnabled(boolean b)
Enables or disables the menu item.
32void setModel(ButtonModel newModel)
Sets the model that this button represents.
33void setUI(MenuItemUI ui)
Sets the look and feel object that renders this component.
34void updateUI()
Resets the UI property with a value from the current look and feel.

Methods inherited

This class inherits methods from the following classes:

  • javax.swing.JAbstractButton

  • javax.swing.JComponent

  • java.awt.Container

  • java.awt.Component

  • java.lang.Object

JMenuItem Example

Create the following java program using any editor of your choice in say D:/ > SWING > com > tutorialspoint > gui >

SwingMenuDemo.java
package com.tutorialspoint.gui;

import java.awt.*;
import java.awt.event.*;

public class SwingMenuDemo {
   private JFrame mainFrame;
   private JLabel headerLabel;
   private JLabel statusLabel;
   private JPanel controlPanel;

   public SwingMenuDemo(){
      prepareGUI();
   }

   public static void main(String[] args){
      SwingMenuDemo  swingMenuDemo = new SwingMenuDemo();
      swingMenuDemo.showMenuDemo();
   }

   private void prepareGUI(){
      mainFrame = new JFrame("Java SWING Examples");
      mainFrame.setSize(400,400);
      mainFrame.setLayout(new GridLayout(3, 1));

      headerLabel = new JLabel("",JLabel.CENTER );
      statusLabel = new JLabel("",JLabel.CENTER);

      statusLabel.setSize(350,100);
      mainFrame.addWindowListener(new WindowAdapter() {
         public void windowClosing(WindowEvent windowEvent){
            System.exit(0);
         }
      });
      controlPanel = new JPanel();
      controlPanel.setLayout(new FlowLayout());

      mainFrame.add(headerLabel);
      mainFrame.add(controlPanel);
      mainFrame.add(statusLabel);
      mainFrame.setVisible(true);
   }

   private void showMenuDemo(){
      //create a menu bar
      final JMenuBar menuBar = new JMenuBar();

      //create menus
      JMenu fileMenu = new JMenu("File");
      JMenu editMenu = new JMenu("Edit");
      final JMenu aboutMenu = new JMenu("About");
      final JMenu linkMenu = new JMenu("Links");

      //create menu items
      JMenuItem newMenuItem = new JMenuItem("New");
      newMenuItem.setMnemonic(KeyEvent.VK_N);
      newMenuItem.setActionCommand("New");

      JMenuItem openMenuItem = new JMenuItem("Open");
      openMenuItem.setActionCommand("Open");

      JMenuItem saveMenuItem = new JMenuItem("Save");
      saveMenuItem.setActionCommand("Save");

      JMenuItem exitMenuItem = new JMenuItem("Exit");
      exitMenuItem.setActionCommand("Exit");

      JMenuItem cutMenuItem = new JMenuItem("Cut");
      cutMenuItem.setActionCommand("Cut");

      JMenuItem copyMenuItem = new JMenuItem("Copy");
      copyMenuItem.setActionCommand("Copy");

      JMenuItem pasteMenuItem = new JMenuItem("Paste");
      pasteMenuItem.setActionCommand("Paste");

      MenuItemListener menuItemListener = new MenuItemListener();

      newMenuItem.addActionListener(menuItemListener);
      openMenuItem.addActionListener(menuItemListener);
      saveMenuItem.addActionListener(menuItemListener);
      exitMenuItem.addActionListener(menuItemListener);
      cutMenuItem.addActionListener(menuItemListener);
      copyMenuItem.addActionListener(menuItemListener);
      pasteMenuItem.addActionListener(menuItemListener);

      final JCheckBoxMenuItem showWindowMenu =
         new JCheckBoxMenuItem("Show About", true);
      showWindowMenu.addItemListener(new ItemListener() {
         public void itemStateChanged(ItemEvent e) {
            if(showWindowMenu.getState()){
               menuBar.add(aboutMenu);
            }else{
               menuBar.remove(aboutMenu);
            }
         }
      });

      final JRadioButtonMenuItem showLinksMenu =
         new JRadioButtonMenuItem("Show Links", true);
      showLinksMenu.addItemListener(new ItemListener() {
         public void itemStateChanged(ItemEvent e) {
            if(menuBar.getMenu(3)!= null){
               menuBar.remove(linkMenu);
               mainFrame.repaint();
            }else{
               menuBar.add(linkMenu);
               mainFrame.repaint();
            }
         }
      });

      //add menu items to menus
      fileMenu.add(newMenuItem);
      fileMenu.add(openMenuItem);
      fileMenu.add(saveMenuItem);
      fileMenu.addSeparator();
      fileMenu.add(showWindowMenu);
      fileMenu.addSeparator();
      fileMenu.add(showLinksMenu);
      fileMenu.addSeparator();
      fileMenu.add(exitMenuItem);
      editMenu.add(cutMenuItem);
      editMenu.add(copyMenuItem);
      editMenu.add(pasteMenuItem);

      //add menu to menubar
      menuBar.add(fileMenu);
      menuBar.add(editMenu);
      menuBar.add(aboutMenu);
      menuBar.add(linkMenu);

      //add menubar to the frame
      mainFrame.setJMenuBar(menuBar);
      mainFrame.setVisible(true);
   }

   class MenuItemListener implements ActionListener {
      public void actionPerformed(ActionEvent e) {
         statusLabel.setText(e.getActionCommand()
         + " JMenuItem clicked.");
      }
   }
}

Compile the program using command prompt. Go to D:/ > SWING and type the following command.

D:\SWING>javac com\tutorialspoint\gui\SwingMenuDemo.java

If no error comes that means compilation is successful. Run the program using following command.

D:\SWING>java com.tutorialspoint.gui.SwingMenuDemo

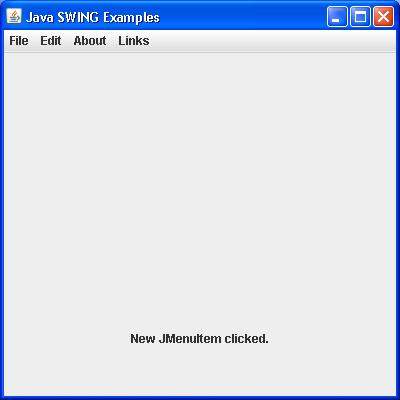

Verify the following output. (Click on File Menu. Select any menu item.)

SWING JMenuItem
