Decompose By Subdomain
Problem Statement
Microservice architecture structures an application as a set of loosely coupled microservices and each service should be developed independently in agile manner to enable continous delivery/deployment. When a large, complex application is to be built using microservice architecture, the major problem is how to design loosely coupled microservices or to break a large application into small loosely coupled services?
Solution
We can define a microservice corresponding to Domain-Driven Design(DDD) subdomains. DDD refers to business as a domain and a domain can have multiple subdomains. Now each subdomain refers to different areas. For Example −
Order Management − Order Management subdomain refers to Orders.
Customer Management − Customer Management subdomain refers to Customers.
Subdomains can be further classified using following criterias −
Core − Most important and key differentiator of an application.
Supporting − Business related and are used to support the business activities.
Generic − Not specific to business but are used to enhance the business operations.
Example

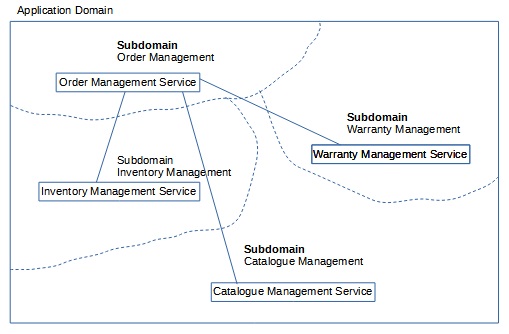

Consider an example of an Online Book Store. It can have following subdomains and corresponding microservices −
Books Catalog Management
Inventory Management
Order Management
Warranty Management
Advantages
Stable Architecture − As business subdomains are stable, this architecture is highly stable.
Cross-functional Teams − Development Teams works independently, are cross-functional and are organized around functional features instead of technical features.
Loosely Coupled Services − Developed services will be loosely coupled and cohesive.
Dis-advantages
Need good understand of Business − Business subdomains needs be indentified after understanding the business. Understanding organizational structure can help as organizations are structured based on their capabilities.
High Level Domain Model needed − Business domain objects required as they corresponds to business subdomains.
